The Nastel Navigator system consists of two main parts:
- Server-side components that reside within an Apache-Tomcat JSP container or equivalent.
- Client application running in a browser using HTML pages, which are served by the server-side components.

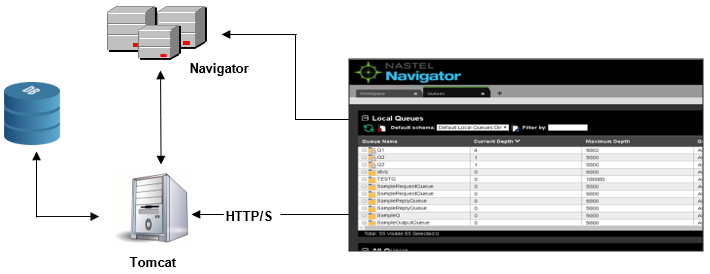

*Figure 2.1-A. Message Management Flow Chart
AutoPilot for Middleware Security Manager must be installed and configured at a minimum to use Nastel Navigator.
Nastel Navigator supports both IBM MQ and TIBCO EMS objects. For information, please see the following links:
Differences Between APMW and Nastel Navigator
- Tree view removed – users no longer have to drill down
- Layout uses tabs versus lists
- Viewlet – provides quick access to the data you need
- Compare function – quickly compare and analyze data
- Supports EMS objects
- Provides scheduling
